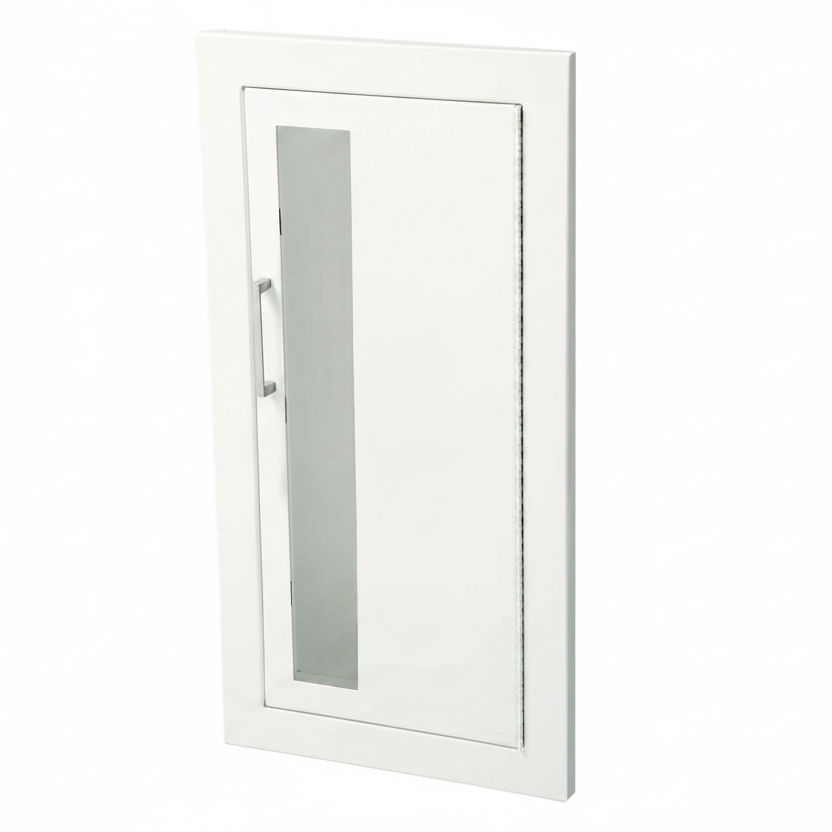

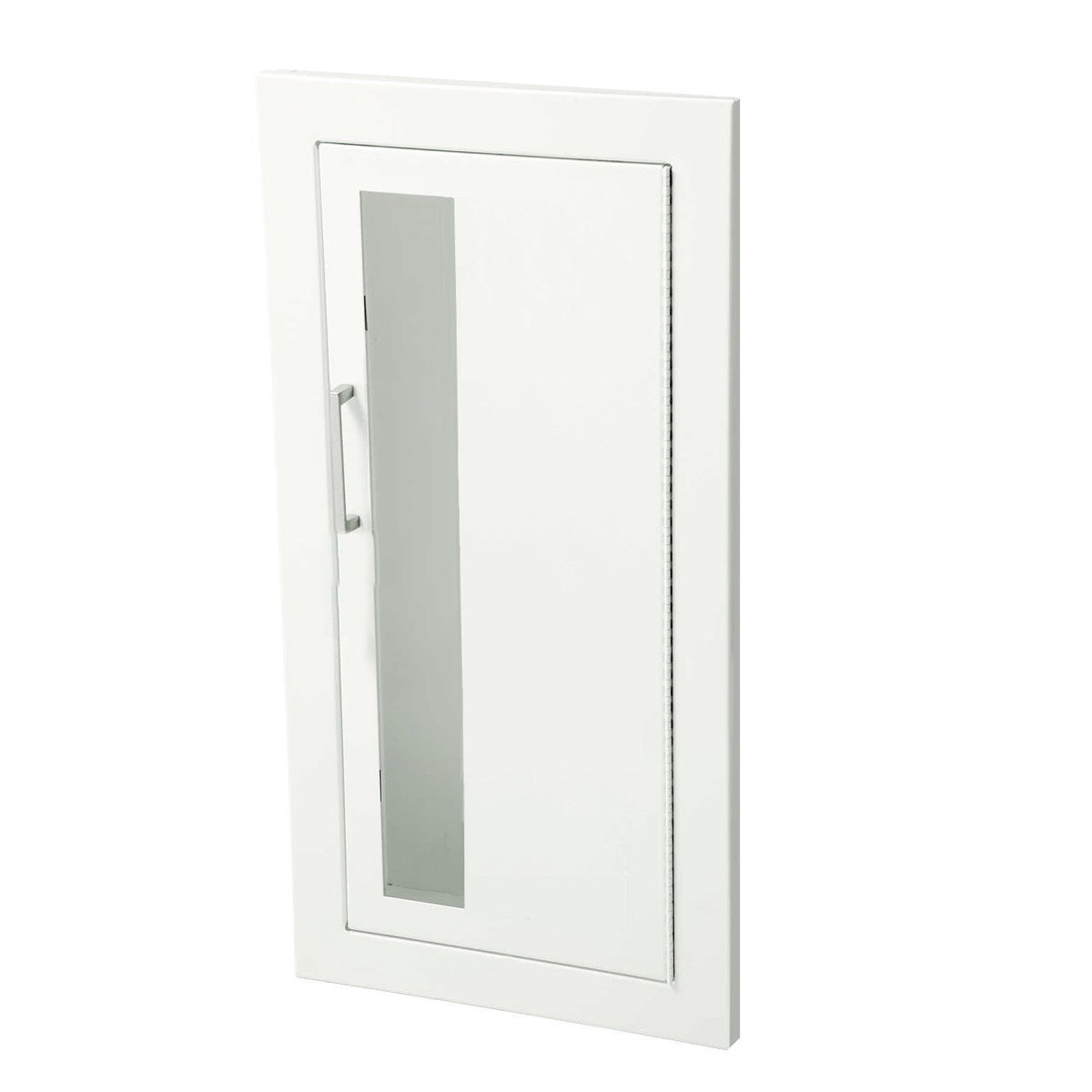

The JL Industries Ambassador 1015V10 is a fully recessed steel fire extinguisher cabinet for a 10 lb extinguisher, made in the USA. The 3/8 in flat square-edge trim sits nearly flush with the wall, so it is the Ambassador to specify where a corridor or lobby wall has the depth for a fully recessed tub and the finished look calls for almost no projection. The vertical-duo clear acrylic door swings on a continuous hinge that opens 180 degrees and closes on a zinc-plated pull handle with roller catch, so there is no lock and no key. The same cabinet with a keyed Saf-T-Lok door is the 1015W10.
Specifications
| Model | Ambassador 1015V10 |
| Mounting | Fully recessed, 3/8 in flat square-edge trim |
| Fits extinguisher | 2.5 to 10 lb (see compatibility below) |
| Tub interior (W×H×D) | 10-1/2 in × 24 in × 6 in |
| Trim, outside (W×H) | 13-7/8 in × 27-3/8 in |
| Rough wall opening (W×H×D) | 11-1/2 in × 25 in × 5-7/8 in |
| Material / finish | 24 ga galvanized steel tub, 20 ga cold-rolled steel door and trim, white powder coat |
| Door | Vertical-duo 0.090 in clear acrylic glazing (8-1/2 in × 22-3/4 in), zinc-plated pull handle, roller catch, 180° continuous hinge |
| Fire rating | Non-rated |
| ADA | 3/8 in projection (within the 4 in limit); locate the handle 48 in or less above the floor |
| Weight | 17 lb |
| Country of Origin | USA |
Extinguisher compatibility
JL's fit matrix rates this tub for standard 2.5 to 10 lb dry-chemical extinguishers, with wider-bodied clean-agent units to 5 lb and 5 lb CO2. Fit is set by the extinguisher's cylinder diameter against this cabinet's 6 in interior (tub) depth, not by weight; a standard 10 lb dry-chemical unit fits, while a wide-body "short" 10 lb or a 20 lb unit is too deep and needs a larger cabinet. Confirm the cylinder diameter on your extinguisher's cut sheet against the tub depth above. See our Fire Extinguisher Cabinet Selection Guide for the full fit matrix.
Placement and mounting height follow the NFPA 10 requirements.
Model cross-reference
JL Industries builds this same 10-1/2 in × 24 in × 6 in tub in other Ambassador steel trims: 1014 (trimless), 1016 (1-1/2 in square, which we carry as the 1016V10), 1017 (3 in rolled, the 1017V10), 1012 (4 in rolled with flush pull), 1018 (4-1/2 in rolled), plus the surface-mount 1013. The recessed and semi-recessed models all share this cabinet's 11-1/2 in × 25 in wall opening, so this cabinet fits the existing opening when you are replacing one of them; only the opening depth changes with the trim. For a locking door on this trim, see the 1015W10. Door style, glazing, colors, and a fire-rated FX2 build are factory options; for an exact configuration, request a quote from this page.
Documents and downloads
For specification and installation: the manufacturer's Ambassador 1015V10 submittal (PDF), Ambassador series submittal (PDF). Need a project-specific submittal filled out? Send us the project details with a quote request.
