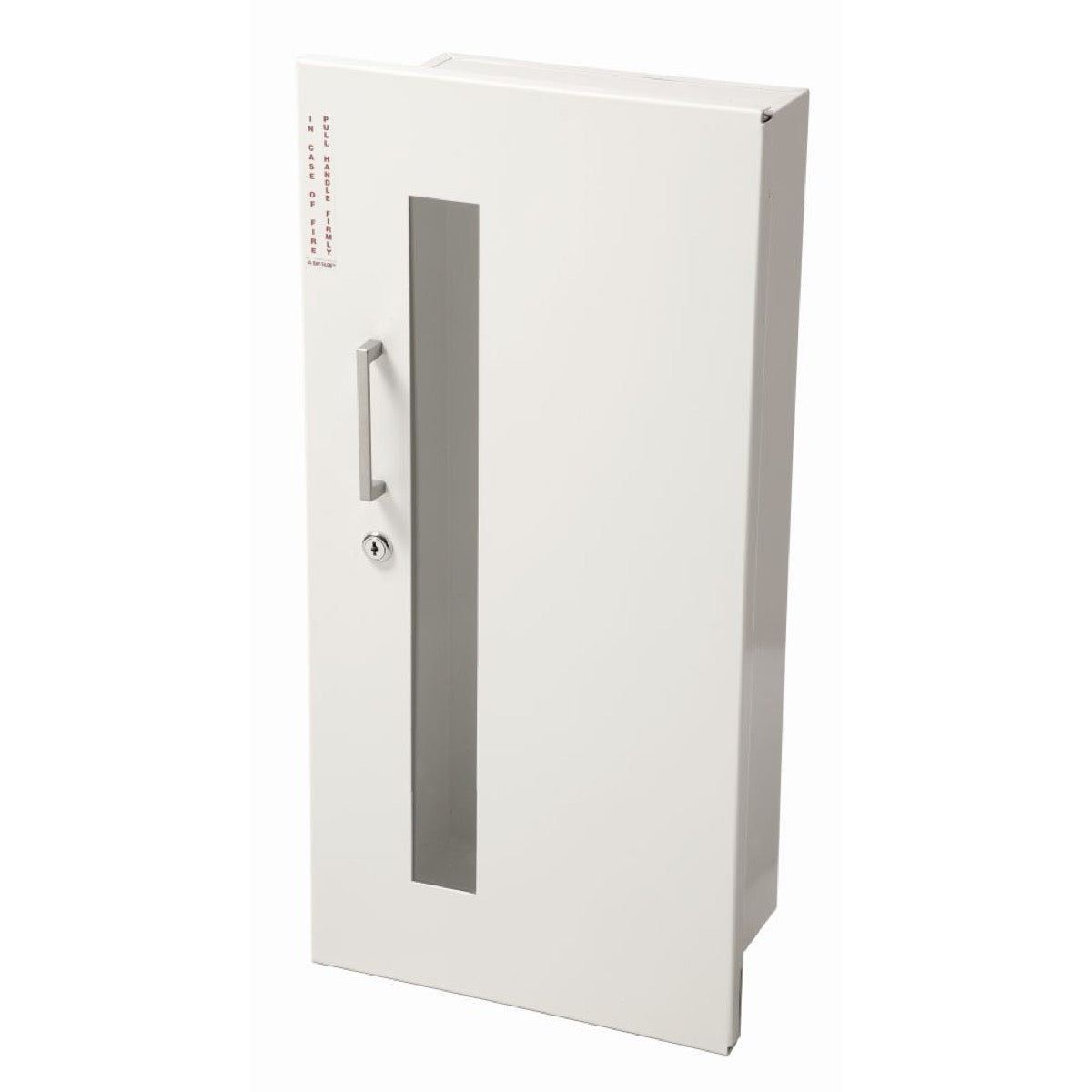

The JL Industries Embassy 5714V10 is a trimless, fully-recessed fire extinguisher cabinet for a 15 lb extinguisher, made in the USA. The cold-rolled steel tub has a white powder-coat finish and a vertical-duo glazed (clear acrylic) door with concealed hinges and a pull handle. The 1-inch overlapping trimless door gives a clean, finished look for commercial and institutional interiors.
Specifications
| Model | Embassy 5714V10 |
| Mounting | Trimless fully-recessed |
| Fits extinguisher | 5 to 15 lb |
| Tub interior (W×H×D) | 16 in × 32 in × 7-3/4 in |
| Rough wall opening (W×H×D) | 17 in × 33 in × 7-7/8 in |
| Door, outside (W×H) | 18-1/4 in × 34-1/4 in |
| Material / finish | Cold-rolled steel, powder coat (white, black, or red) |
| Door | Vertical-duo clear acrylic glazing, pull handle |
| Fire rating | Non-rated |
| ADA projection | Recessed — 4 in or less |
| Country of Origin | USA |
Finish options

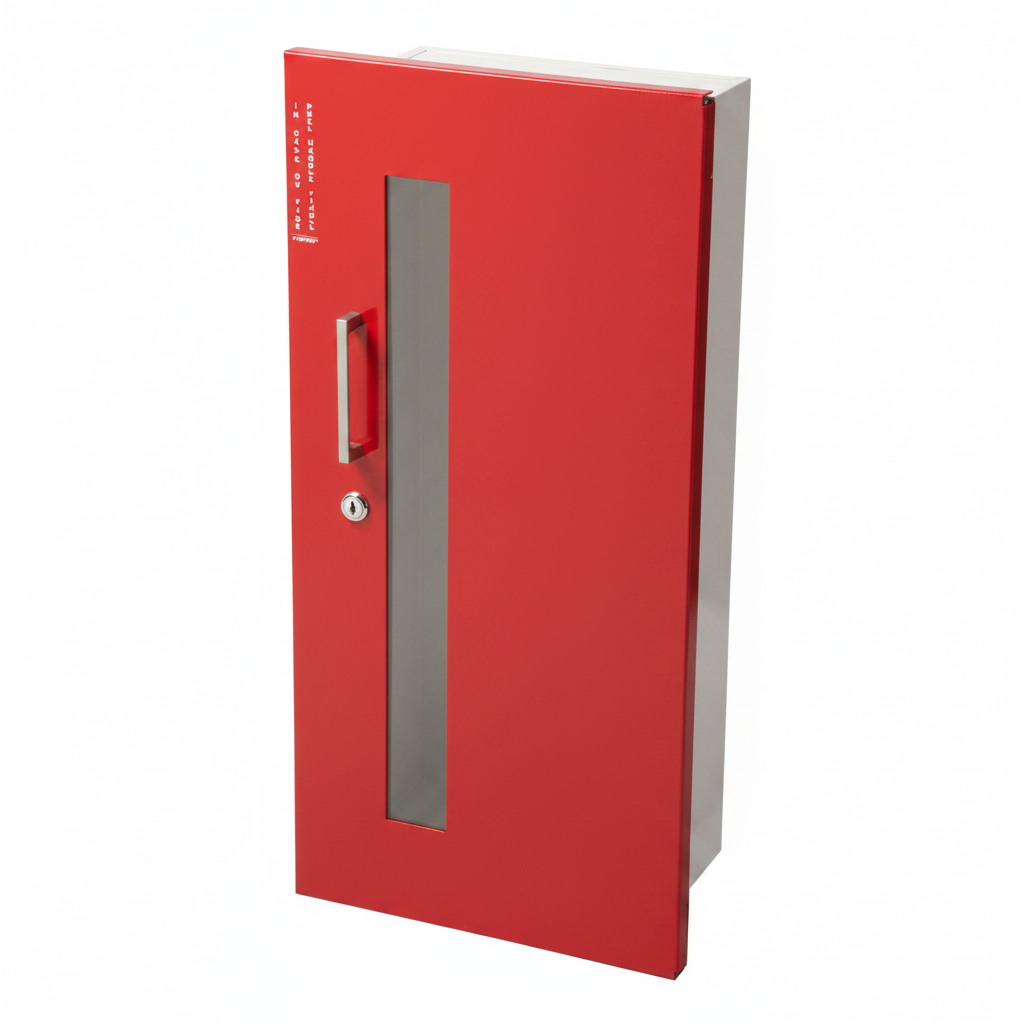

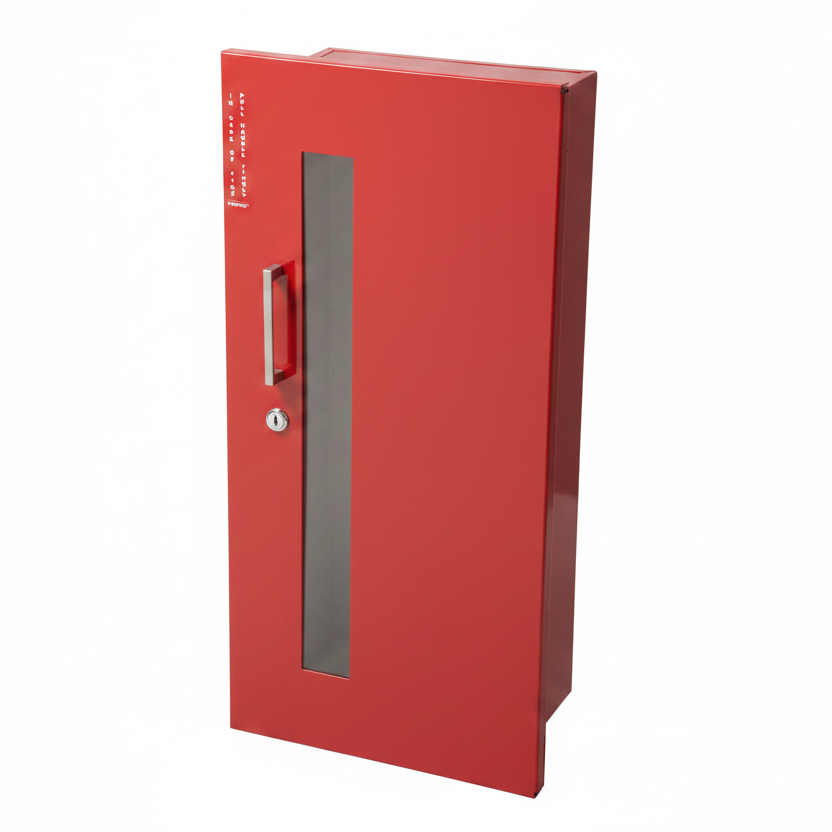

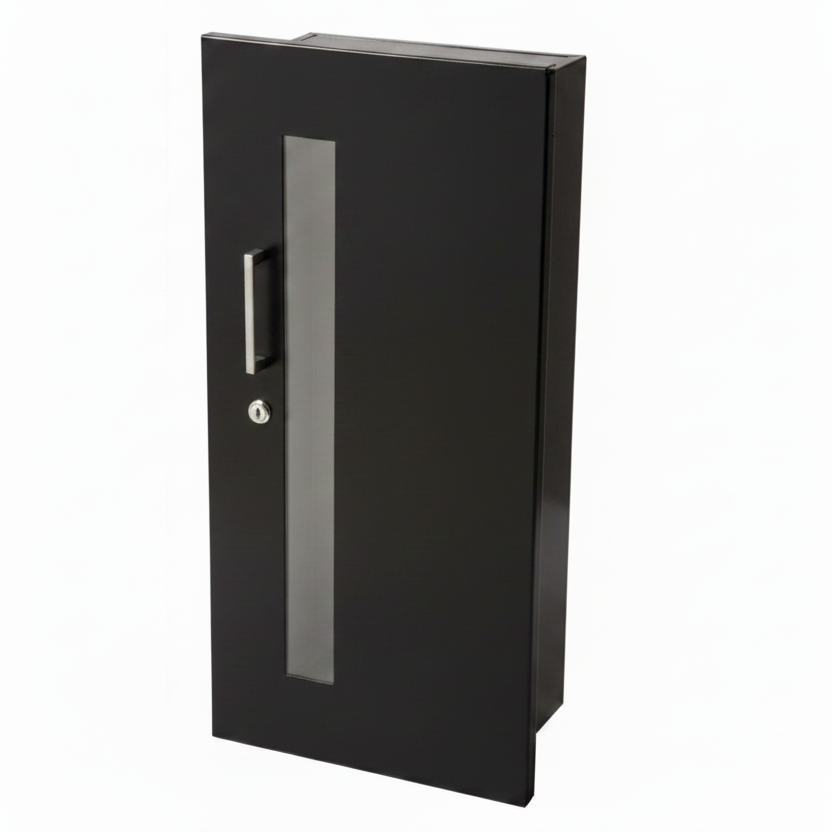

White powder coat is the stock finish and ships from inventory. Black, red, and red with a white tub are factory finishes built to order and may vary from images shown here, so allow additional lead time on those. Need a color outside these three, or the same cabinet in a different door style or glazing? Ask us for a quote.
Extinguisher compatibility
Sized for 5 to 15 lb portable extinguishers. Fit is set by the extinguisher's cylinder diameter against this cabinet's 7-3/4 in interior (tub) depth, not by weight — this deeper tub accepts the larger-diameter 10 to 15 lb units that will not fit a shallow 5-3/4 in cabinet. Confirm the cylinder diameter on your extinguisher's cut sheet against the tub depth above. See our Fire Extinguisher Cabinet Selection Guide for the full fit matrix.
Placement and mounting height follow the NFPA 10 requirements.
