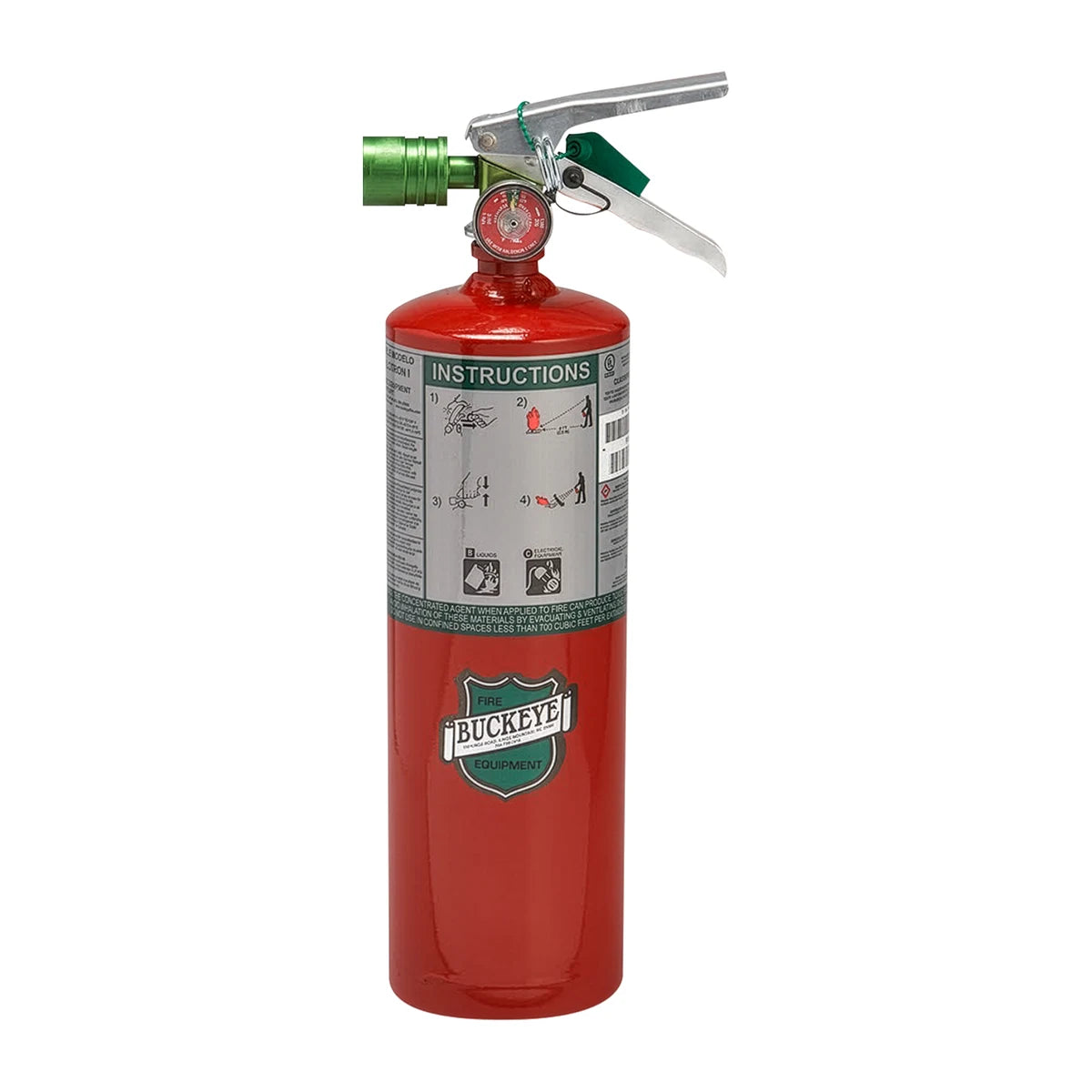

Halotron I is a clean agent that leaves no residue and conducts no electricity, developed as a replacement for Halon 1211. Buckeye makes this 5 lb stored-pressure unit with a fixed nozzle for server rooms, electrical rooms, and equipment areas. Rated 5-B:C and manufactured in accordance with ANSI/UL 2129 and ANSI/UL 711.

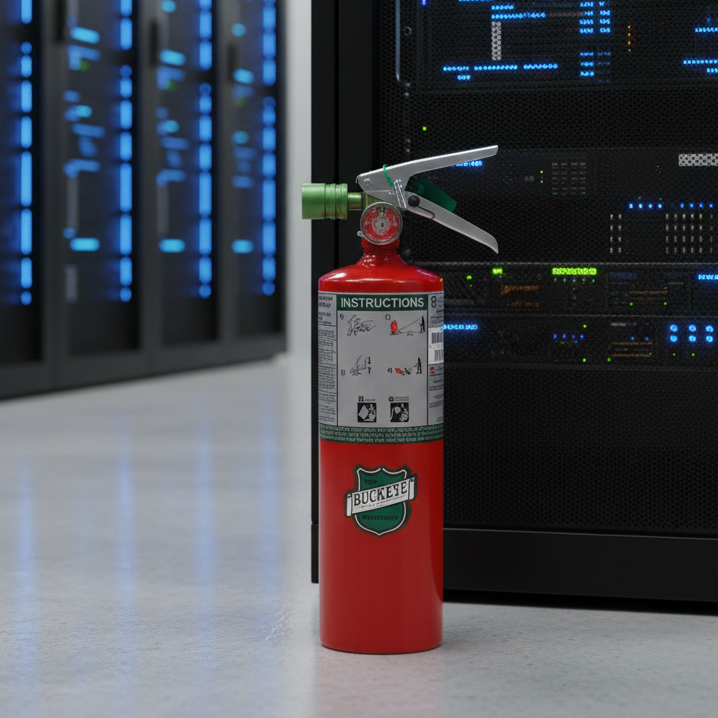

Because Halotron discharges as a rapidly evaporating liquid and leaves nothing behind, it is the right choice anywhere ABC dry chemical would do collateral damage: server cabinets, telecom gear, lab instruments, and electronics. Dry chemical extinguishes the fire but leaves corrosive residue that keeps damaging boards and drives afterward.
Portable Halotron units complement fixed clean-agent systems governed by NFPA 2001, with NFPA 75 covering fire protection for IT equipment rooms; for placement and maintenance see NFPA 10. Steel cylinder with polyester epoxy powder coating and a rugged all-metal valve assembly. Made in Kings Mountain, NC. NFPA 75 also covers firestopping the cable and conduit penetrations through the room's fire-rated walls, the passive side of the standard; see our data center firestop compliance guide.
| Part Number | 70510 |
| UL Rating | 5-B:C |
| Agent Capacity | 5 lb (2.27 kg) |
| Shipping Weight | 9.5 lb |
| Discharge Time | 9 seconds |
| Height | 16.375 in (41.6 cm) |
| Width | 6.5 in (16.5 cm) |
| Cylinder Diameter | 4.25 in (10.8 cm) |
| Nozzle | Fixed Nozzle, Wall Mount |
| Country of Origin | USA (Kings Mountain, NC) |
Matching this unit to a written spec: the 5 lb model is rated 5-B:C, flammable liquids and electrical only, with no Class A rating. Spec lines that call for 1-A or 2-A coverage need the 11 lb or 15.5 lb sizes in the Halotron collection. The manufacturer datasheet (PDF) has the full spec table, and our UL 2129 page explains the agent designations spec writers use. For project quantities, request a bulk quote.
