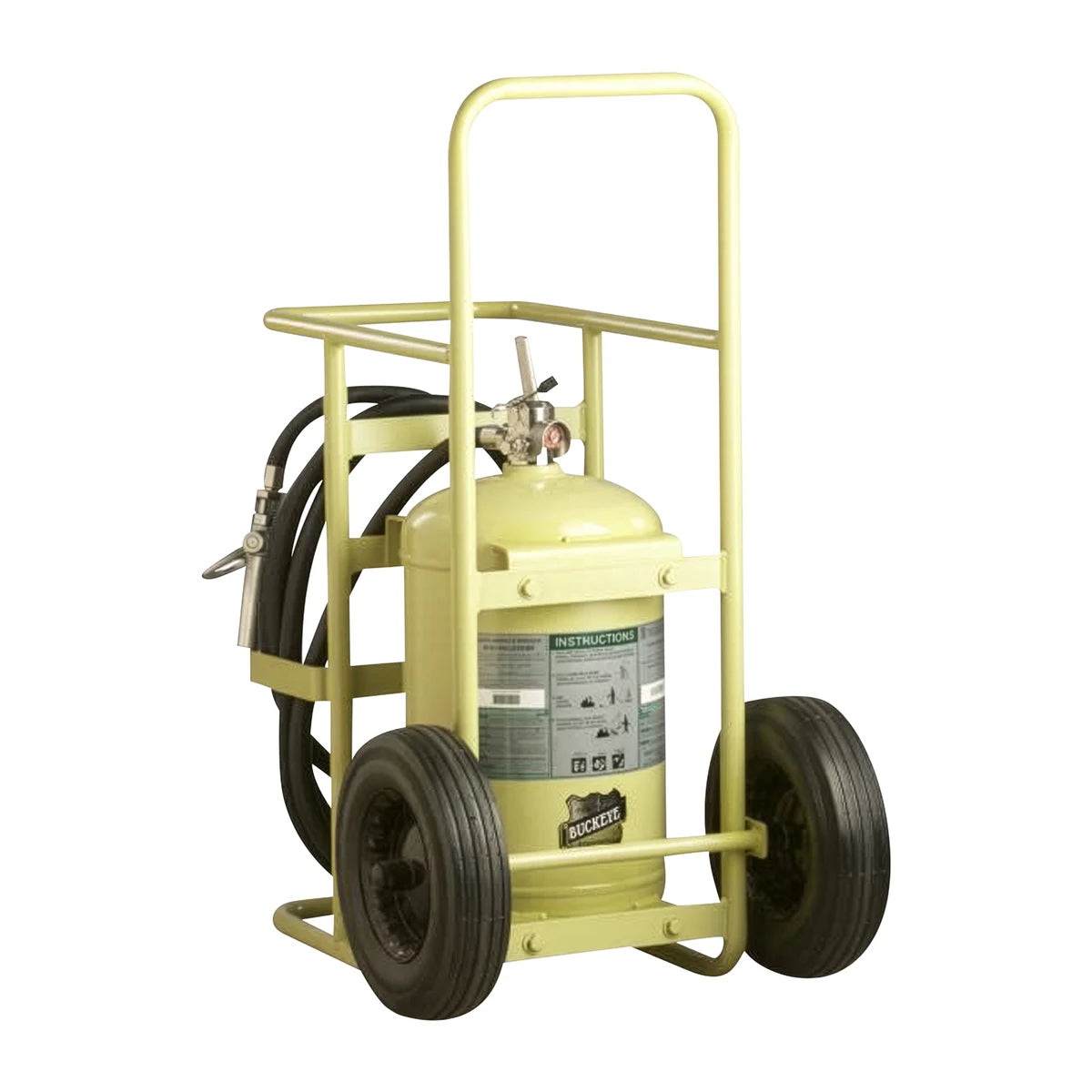

Buckeye W-65 is a 65 lb wheeled Halotron I clean-agent extinguisher rated 4-A:60-B:C.

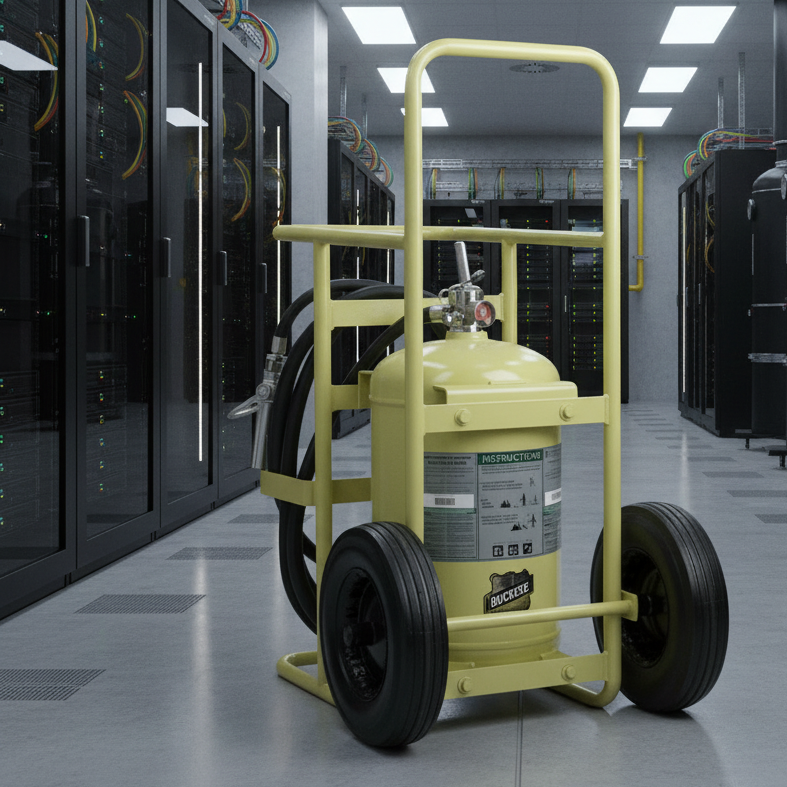

The W-65 delivers a large charge of residue-free, non-conductive Halotron I agent from a mobile two-wheel cart, for protecting big electrical rooms, data halls, generator and transformer areas, and aircraft ramps where a hand-held unit is not enough. Listed to ANSI/UL 711. Built on DOT/TC compliant steel cylinders with a rugged welded steel cart frame, backed by Buckeye's 6-year manufacturer's warranty. Wheeled Halotron units are also the room-scale replacement for legacy Halon 1211 equipment; see our guide to replacing Halon fire extinguishers.
Wheeled clean-agent units back up the fixed suppression systems governed by NFPA 2001, with NFPA 75 covering fire protection for IT equipment rooms; placement and service follow NFPA 10. NFPA 75 also covers firestopping the cable and conduit penetrations through the room's fire-rated walls, the passive side of the standard; see our data center firestop compliance guide. For sizing portable coverage in IT spaces, see the data center and server room extinguisher guide.
| Part Number | 76500 |
| Model | W-65 |
| UL Rating | 4-A:60-B:C |
| Agent Capacity | 65 lb |
| Discharge Time | 20 seconds |
| Discharge Range | 15–25 ft (4.6–7.6 m) |
| Operating Pressure | 150 psi (1035 kPa) |
| Temperature Range | -40°F to +120°F |
| Unit Weight | 252 lb |
| Unit Height | 50 in (127 cm) |
| Unit Width | 24 in (61 cm) |
| Unit Depth | 41.5 in (105 cm) |
| Discharge Hose | 0.75 in x 25 ft (7.6 m) |
| Wheels | Semi-pneumatic rubber |
| Warranty | 6-year manufacturer's warranty |
| Country of Origin | USA (Kings Mountain, NC) |
