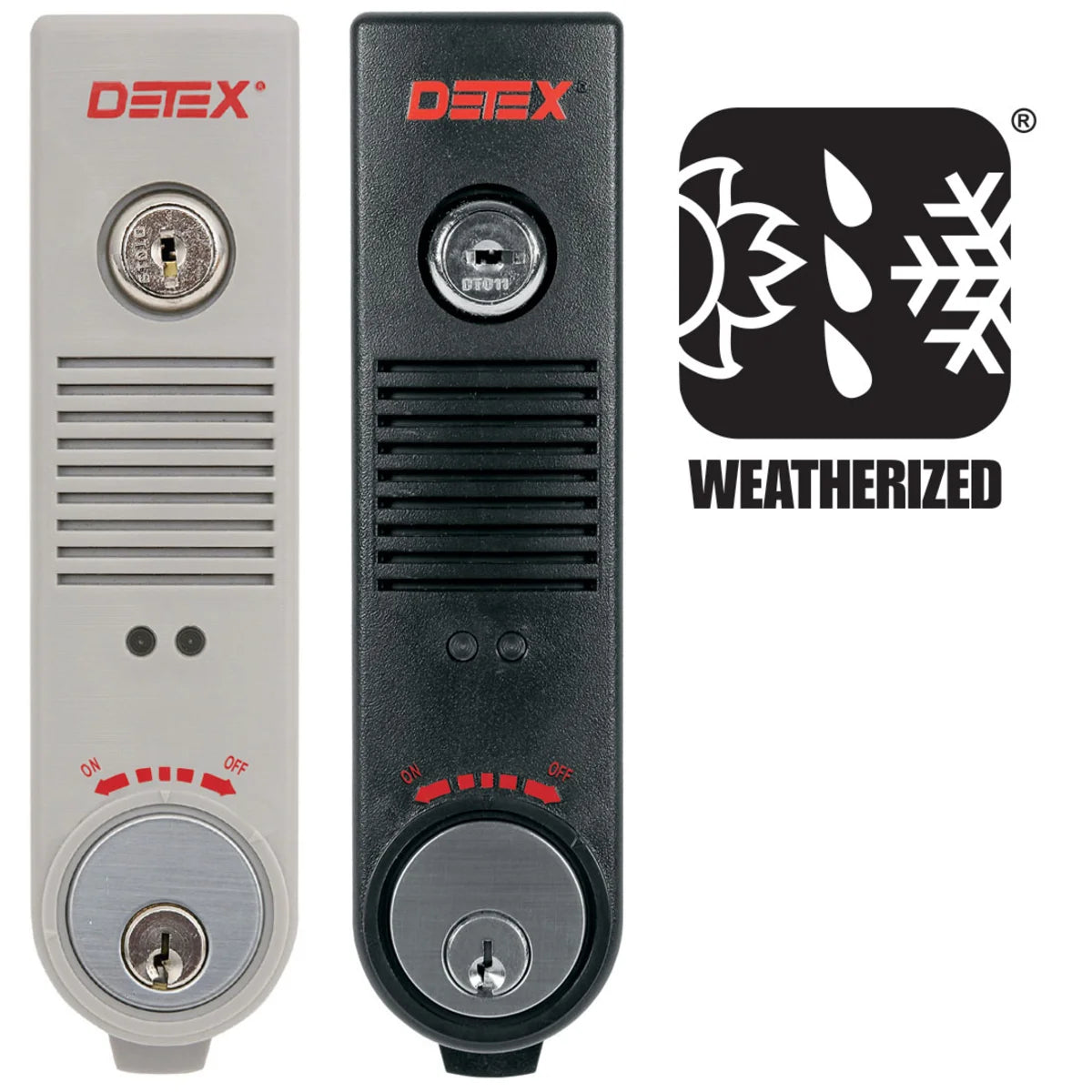

The Detex EAX-300W prevents doors from being propped open in outdoor applications where weather exposure is a concern. This battery-powered alarm mounts on exterior doors, gates, and other openings that must remain closed for security, energy efficiency, or means of egress compliance. The unit sounds a 100dB alarm when the door is held open beyond the programmed delay time.
Field-selectable door open times range from 1 second to 4 minutes with a 15-second factory default. The weatherized housing passes driving rain and salt fog certification for harsh outdoor environments. Internal magnetic contacts eliminate external wiring. The intelligent circuit automatically detects door handing during installation using the included plastic template for accurate alignment.
Battery operation eliminates AC wiring requirements. The 9VDC power source includes low battery alert functionality. The alarm automatically silences when the door closes, reducing nuisance service calls. This addresses NFPA 101 requirements for maintaining proper egress paths while preventing unauthorized door propping in outdoor installations.
| Product Family | EAX-300W Outdoor Battery Powered Door Prop Alarm |
|---|---|
| Power Source | 9VDC Battery |
| Alarm Level | 100dB |
| Delay Range | 1 Second to 4 Minutes |
| Finish | Gray |
| Country of Origin | USA |
No specific fire or panic hardware compliance certifications apply to this door prop alarm device. The weatherized design meets environmental exposure requirements for outdoor gate and door applications.
