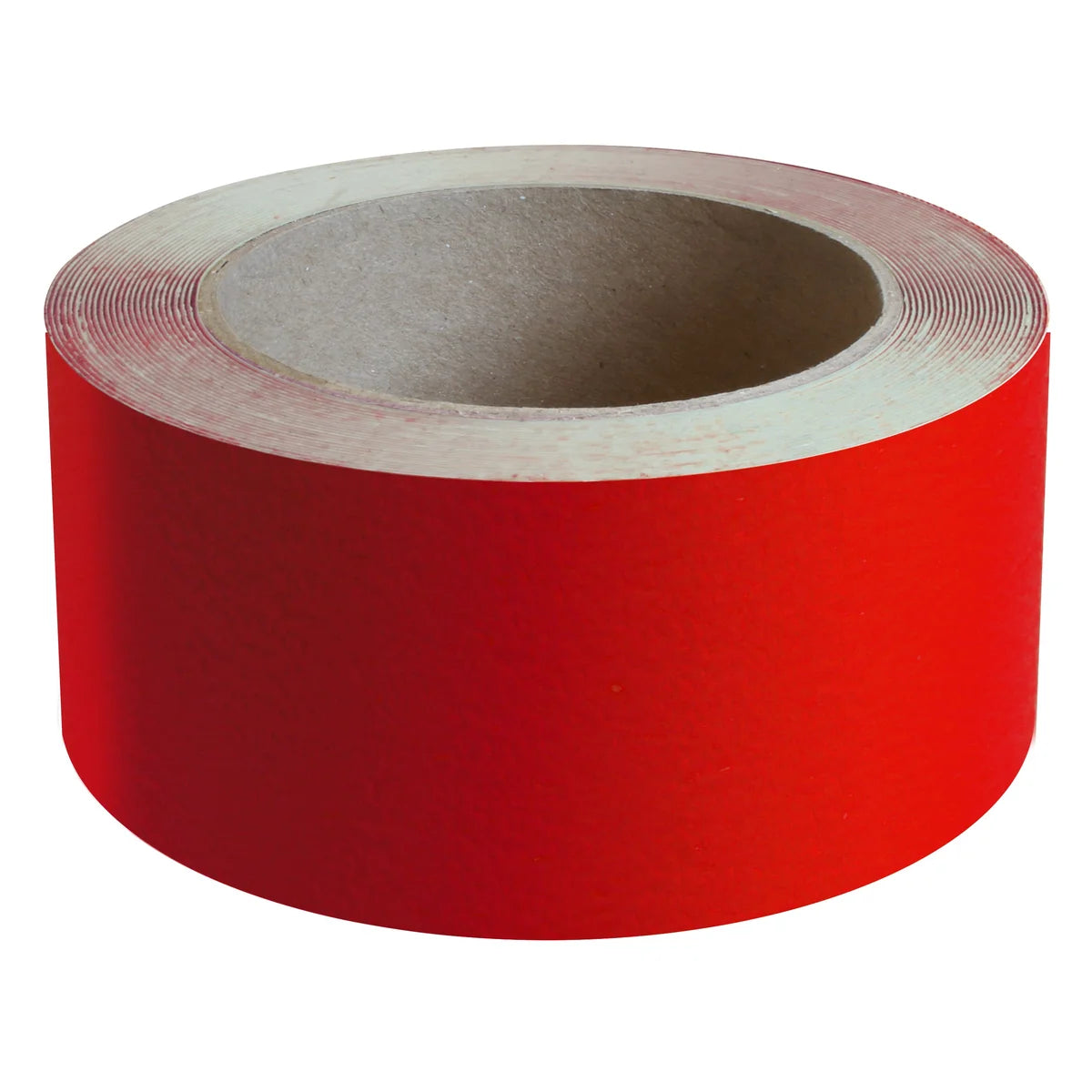

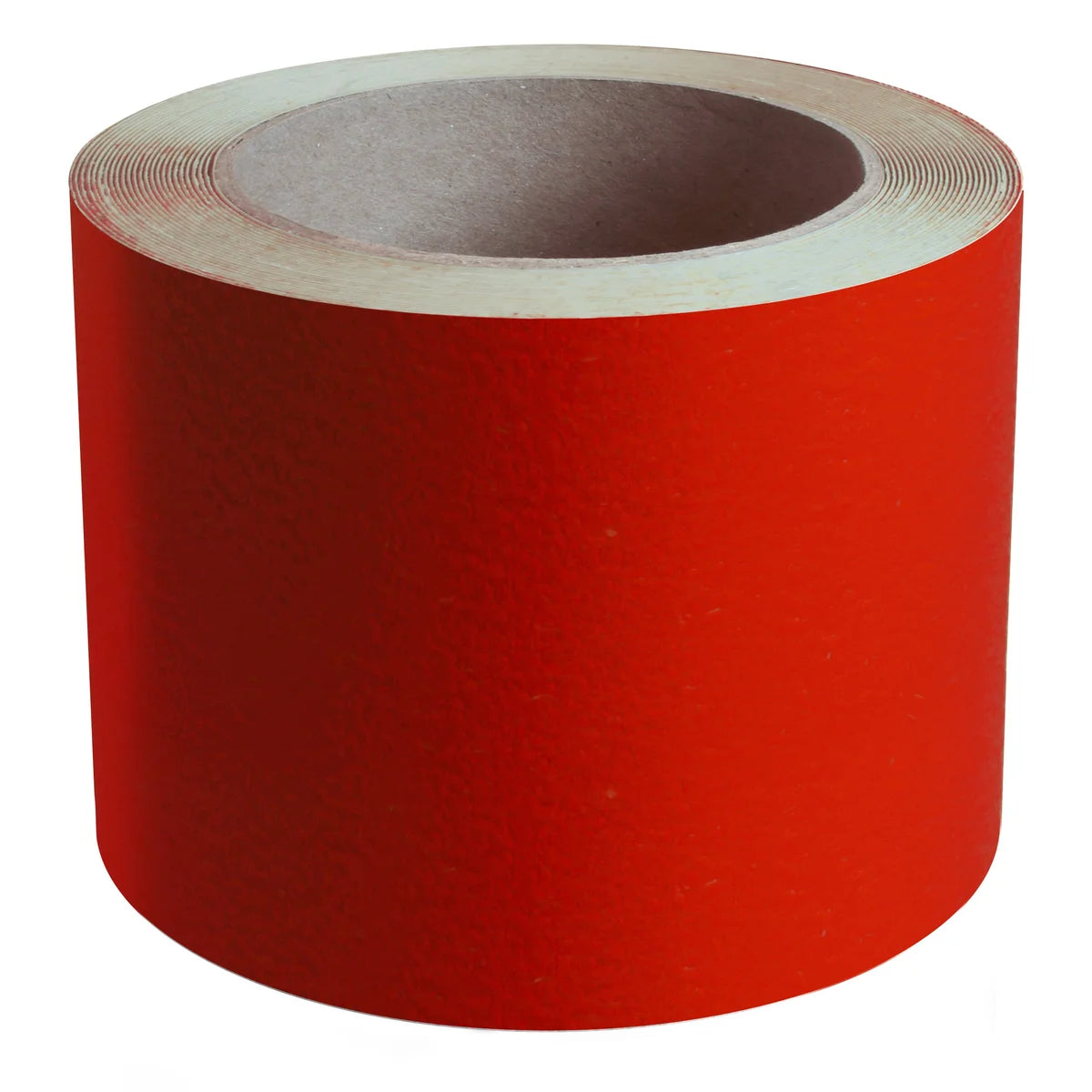

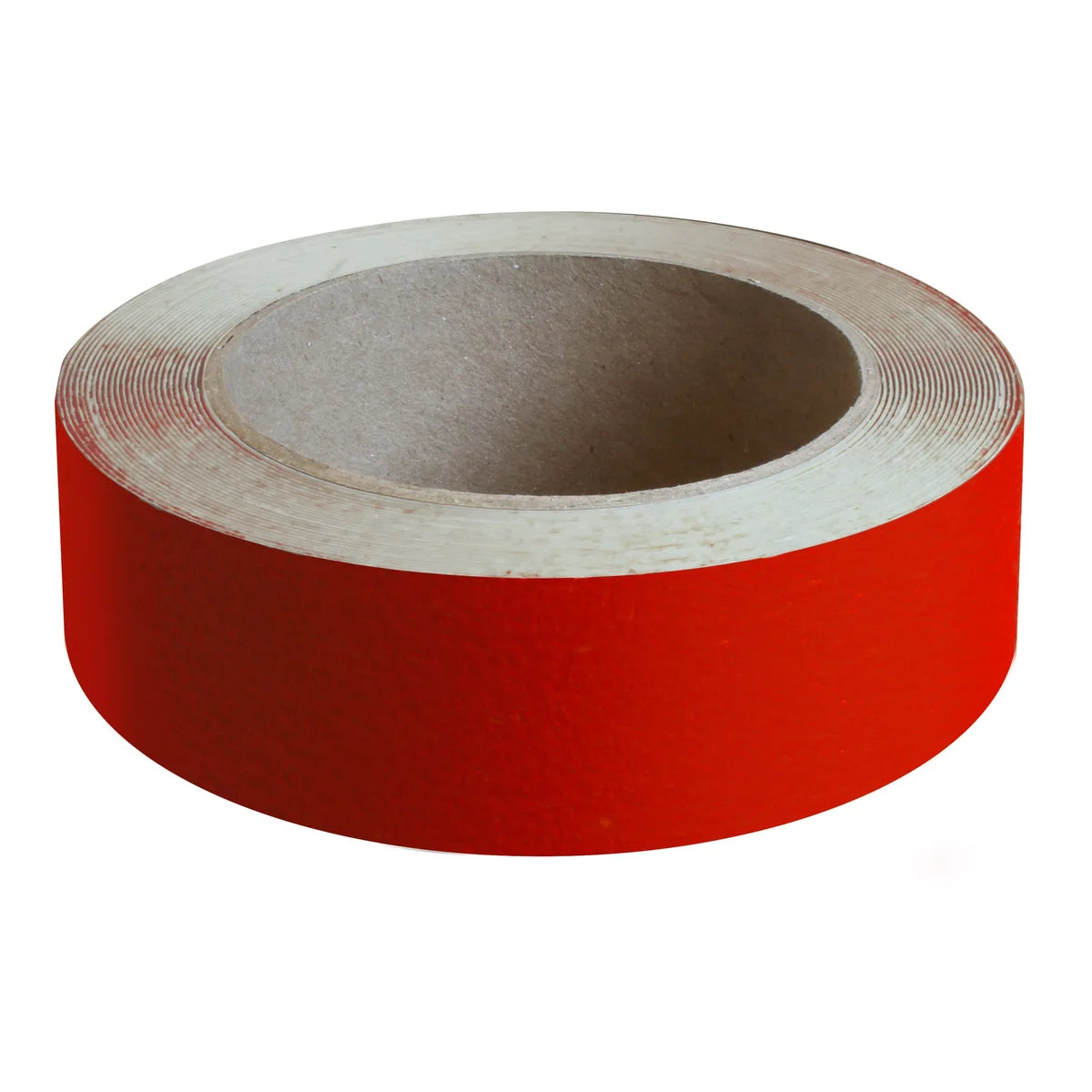

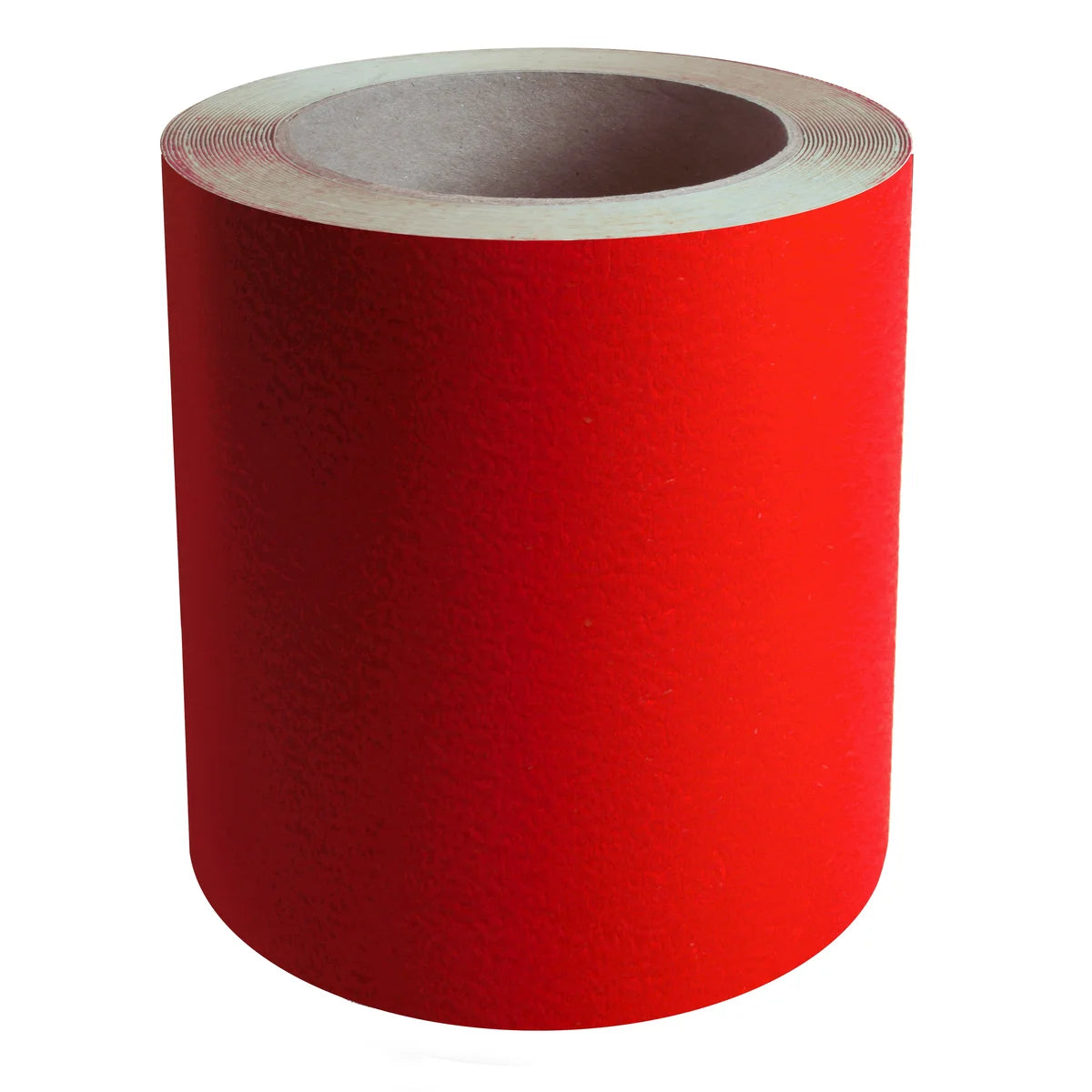

Coarse-textured anti-slip red pressure-sensitive tape from Jessup's Flex Track 4240 line, made in the USA. Sold as a single roll.
Where this color is used
Defective product and red tag zones. Jessup's system uses red for the scrap and defective product area and for red tag zones, so material pulled out of the flow is unmistakable.
Note that OSHA uses red differently. 29 CFR 1910.144 makes red the basic colour for identifying fire protection equipment and apparatus, along with specified danger and emergency stop uses. If you mark scrap zones in red, keep fire equipment identification visually distinct so the two do not compete.
That assignment comes from Jessup's own Industrial Marking System, the colour scheme this tape is sold against. It is a voluntary 5S convention, not a regulation. OSHA names only two colors, in 29 CFR 1910.144: red for fire protection equipment and apparatus, and yellow for caution and for marking physical hazards such as striking against, stumbling, falling, tripping and caught in between. The rule assigns a meaning to those colors, not a floor zone, and it says nothing about the rest of a scheme.
Marking the aisles themselves is required. 29 CFR 1910.176(a) says permanent aisles and passageways have to be appropriately marked, and OSHA has confirmed the lines may be any color so long as they clearly define the aisle. The color is your choice; the marking is not.
ANSI Z535.1 is often cited for floor marking, and it is worth knowing what it actually does. It specifies the safety colors themselves in Munsell and CIE terms so they can be reproduced consistently. Its 2002 revision deleted the guidance on where to apply them, so it is not the source of any floor scheme.
Specifications
| Series | Flex Track 4240 |
|---|---|
| Color | Red |
| Surface | Coarse-textured anti-slip |
| Thickness | 0.026" substrate + 0.002" adhesive (0.028" applied) |
| Peel adhesion, 15 min | 95 oz/in (105 N/100 mm) to stainless, PSTC-101 |
| Peel adhesion, 24 hr | 120 oz/in (131 N/100 mm) to stainless, PSTC-101 |
| Shear adhesion | <= 2 hours, 1/2 in x 1/2 in, 1000 g, PSTC-107 |
| Tack | 10+ inches rolling ball, PSTC-6 |
| Application temperature | above 10 °F |
| Operating temperature | -10 to 200 °F |
| Manufacturer listing | UL 410 |
| Country of origin | USA |
Bonds to
- Concrete
- Asphalt
- Tile
- Metal
- Vinyl
- Epoxy coatings
- Wood
- Painted surfaces
- Laminate
Color and lot variation in paints, powder coatings, lacquers and stains can change how the adhesive performs, so test compatibility on the actual surface before a full installation.
Related requirements
- OSHA 1910.176(a) requires permanent aisles and passageways to be appropriately marked where mechanical handling equipment is used. It does not specify a color, width or material.
- Warehouse floor marking covers 5S color conventions, tape against paint, and how to size a line.
