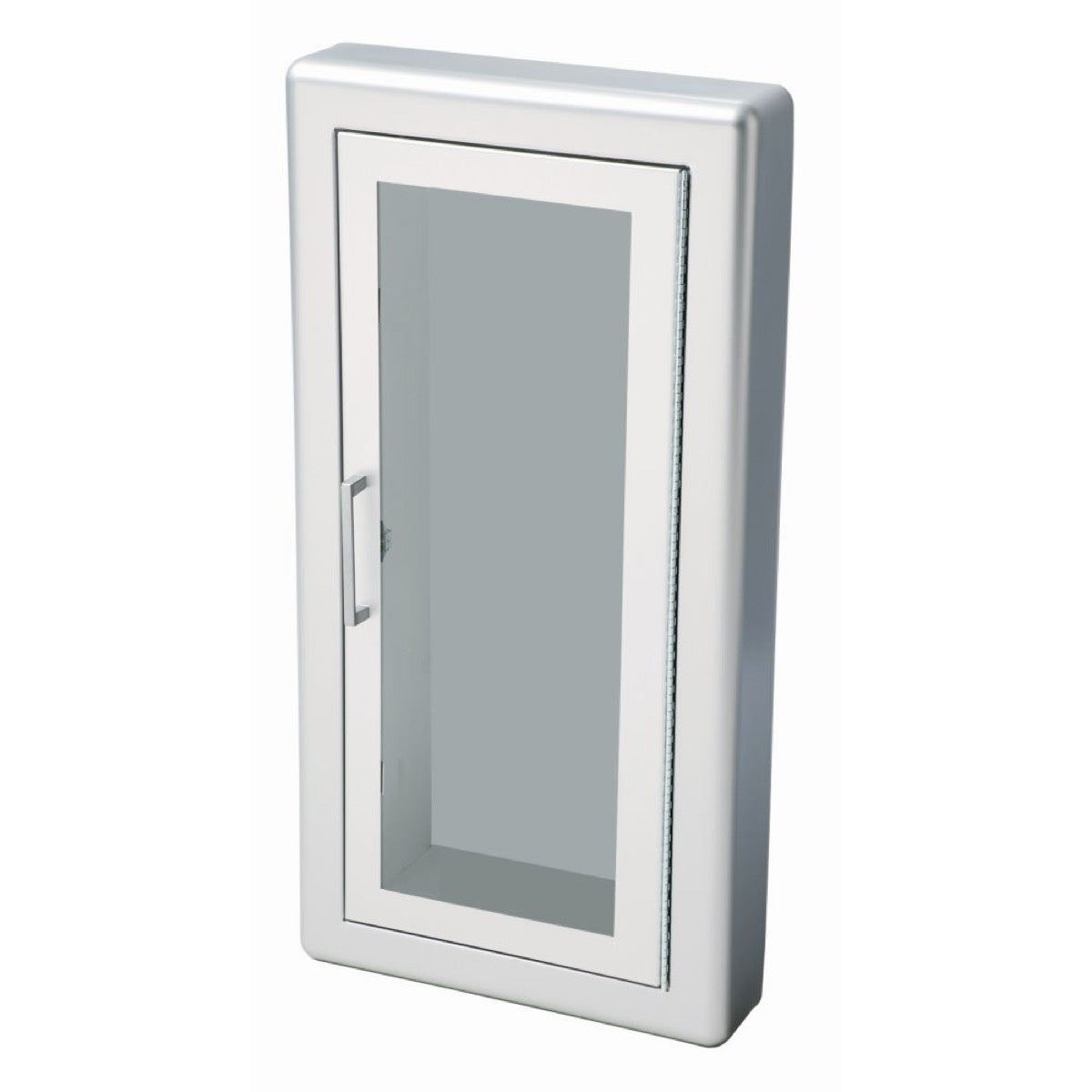

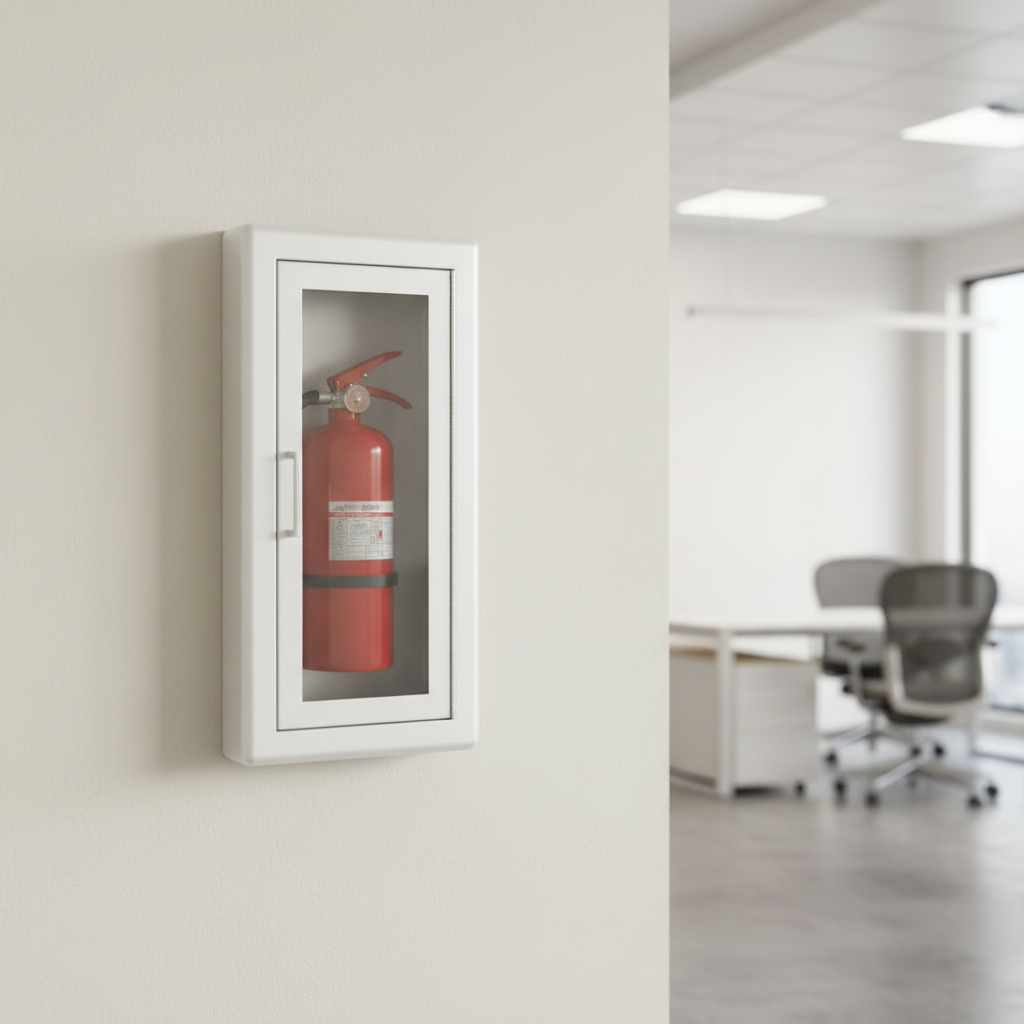

The JL Industries Academy 1027F10 is a semi-recessed aluminum fire extinguisher cabinet for a 10 lb extinguisher, made in the USA. The clear satin anodized aluminum construction resists corrosion and gives a brighter architectural finish than painted steel. The tub recesses into the wall while the 3 in rolled trim projects from the wall face, staying within the ADA 4 in projection limit. The full-view clear acrylic door has a continuous hinge that opens 180 degrees and a pull handle with roller catch.
Specifications
| Model | Academy 1027F10 |
| Mounting | Semi-recessed, 3 in rolled trim |
| Fits extinguisher | 2.5 to 10 lb |
| Tub interior (W×H×D) | 10-1/2 in × 24 in × 6 in |
| Trim, outside (W×H) | 13-7/8 in × 27-3/8 in |
| Rough wall opening (W×H×D) | 11-1/2 in × 25 in × 3-3/8 in |
| Material / finish | Aluminum, clear satin anodized |
| Door | Full-view clear acrylic glazing, pull handle, 180° continuous hinge |
| Fire rating | Non-rated |
| ADA projection | 3 in — 4 in or less |
| Weight | 18 lb |
| Country of Origin | USA |
Extinguisher compatibility
Sized for 2.5 to 10 lb portable extinguishers. Fit is set by the extinguisher's cylinder diameter against this cabinet's 6 in interior (tub) depth, not by weight — a standard 10 lb dry-chemical unit fits, while a wide-body "short" 10 lb or a 20 lb unit is too deep and needs a larger cabinet. Confirm the cylinder diameter on your extinguisher's cut sheet against the tub depth above. See our Fire Extinguisher Cabinet Selection Guide for the full fit matrix.
Placement and mounting height follow the NFPA 10 requirements.
